MQP03 Spiral Jet Mill
In the MQP series spiral jet mill, a high-speed tangential air stream drives the material to collide and shear against itself inside the grinding chamber, breaking it apart. When compressed gas is released instantly through a Laval nozzle it produces an endothermic effect that removes the heat generated during grinding, allowing the material to be milled at low temperature.
custom
150-5445-08687*24 hours hotline
Guide installation
Chauffeur pick-up
After-sales service
Product Introduction

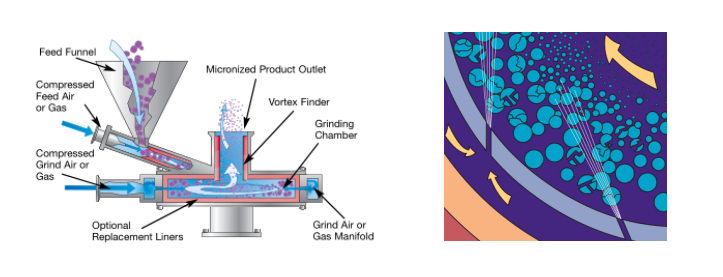

In the MQP series spiral jet mill, a high-speed tangential air stream drives the material to collide and shear against itself inside the grinding chamber, breaking it apart. When compressed gas is released instantly through a Laval nozzle it produces an endothermic effect that removes the heat generated during grinding, allowing the material to be milled at low temperature. The grinding principle is shown below:

Applications
A jet mill that genuinely meets sterile-grade requirements in China; every aspect of its design is carefully considered, achieving a qualitative improvement in GMP compliance.
Product Features
- 01The grinding chamber is CNC-machined from two solid steel plates with no welds, no rotating parts and no dead corners, making it extremely easy to disassemble and clean - especially suitable for the production of sterile injectable and infusion drugs.
- 02The sealing system is machined on world-class CNC machine tools (HARDINGE, USA), ensuring that all design performance targets are achieved.
- 03Internal surfaces are electrolytically polished to a roughness of Ra = 0.4 μm.
- 04Narrow particle size distribution, accurate top cut, and adjustable particle size distribution.
- 05Complies with GMP, cGMP and FDA certification requirements.
- 06Supports CIP and SIP cleaning-in-place requirements.
- 07The entire grinding system is fully enclosed, with no dust emission.
- 08Can be manufactured to DIN, IDF, SMS, 3A and JIS standards.
