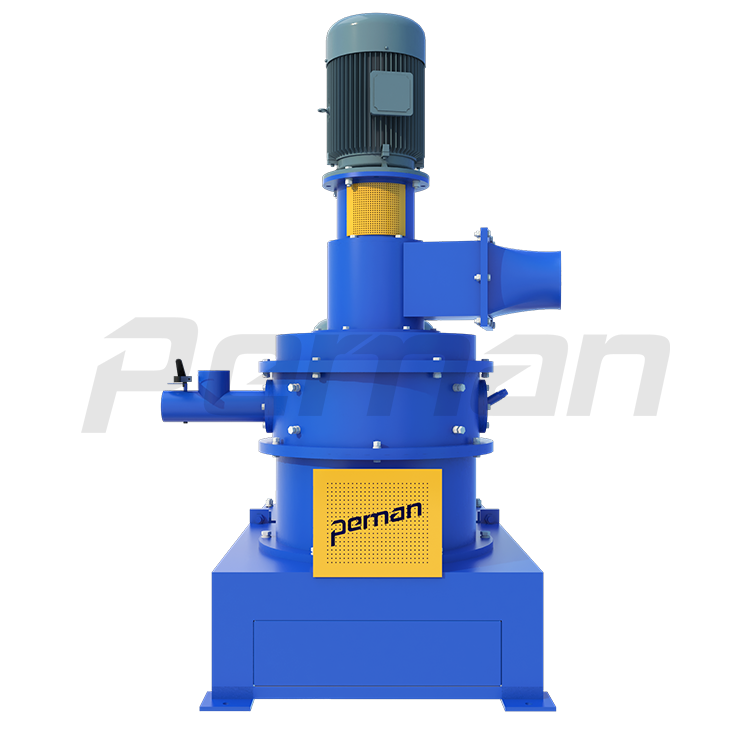

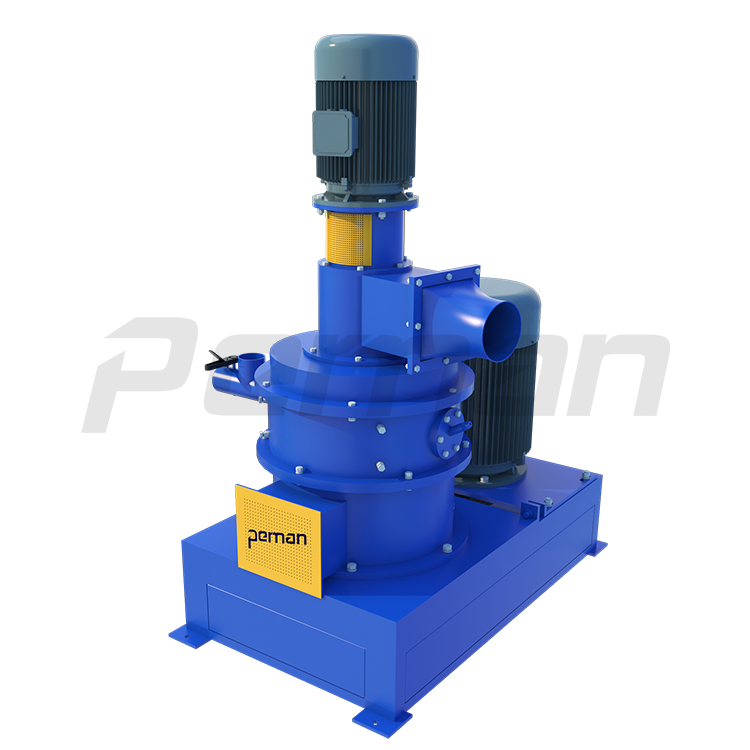

CAM-V Ultrafine Mechanical Mill
CAM-V Ultrafine Mechanical Mill
CAM-V Ultrafine Mechanical Mill

CAM-V Ultrafine Mechanical Mill

Material is fed evenly into the grinding chamber by the feeding system and subjected to the strong impact of the high-speed rotating grinding disc. At the same time, under centrifugal force, it collides with the grinding toothed ring and is acted upon by combined forces such as shearing, friction, and collision, causing the material to be ground. The ground material moves with the airflow to the classification zone, where the classifying wheel adjusted by variable frequency separates coarse and fine material. Products meeting the fineness requirement enter the cyclone collector and dust collector with the airflow, while coarse material returns to the classification zone for secondary grinding.

custom

150-5445-08687*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

      Material is fed evenly into the grinding chamber by the feeding system and subjected to the strong impact of the high-speed rotating grinding disc. At the same time, under centrifugal force, it collides with the grinding toothed ring and is acted upon by combined forces such as shearing, friction, and collision, causing the material to be ground. The ground material moves with the airflow to the classification zone, where the classifying wheel adjusted by variable frequency separates coarse and fine material. Products meeting the fineness requirement enter the cyclone collector and dust collector with the airflow, while coarse material returns to the classification zone for secondary grinding.

Product Features

  • 01This machine uses a built-in classifier instead of the screen of traditional models to adjust fineness.
  • 02By adjusting the speed of the classifying impeller, the product particle size can be adjusted without stopping the machine.
  • 03The strong grinding airflow generated during system grinding provides a strong cooling function, with low temperature rise during grinding. It is especially suitable for processing heat-sensitive and fibrous materials, yielding uniform product particle size.
  • 04Bearings and drive belts use imported components for a long service life.
  • 05Based on material characteristics, the grinding and classifying components are specially designed, upgrading from a general-purpose mill to a dedicated mill to further improve grinding efficiency.
  • 06Suitable for grinding materials of low to medium hardness (below Mohs 3.5). Special materials require customized material and structure improvements.

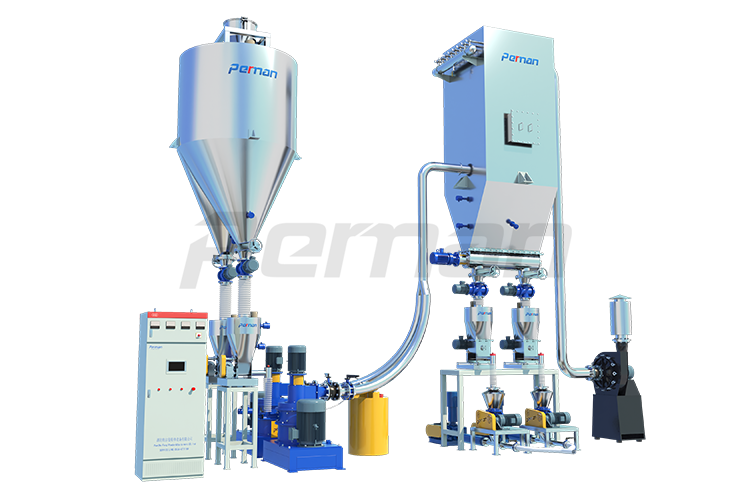

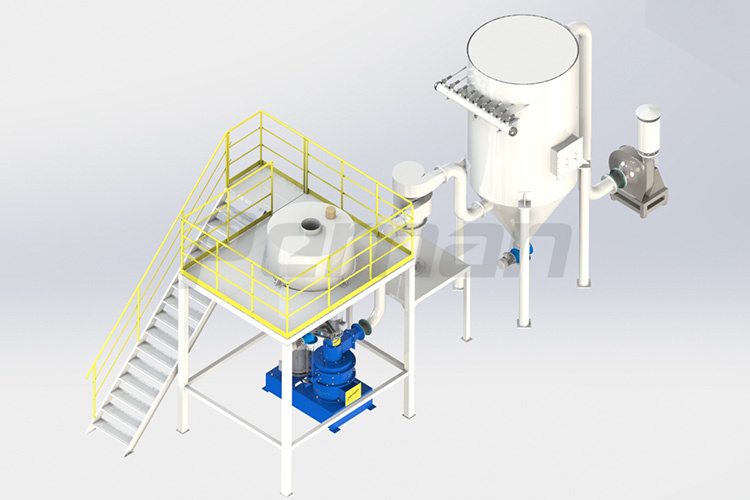

Process Flow Diagram

17392525142647092

17365734061568647

Technical Parameters

Parameter / Model280V/H340V/H410V/H510V/H710V/H760V/H900V/H1000V/H1100V/H1200V/H
Grinding millGrinding disc (mm)280340410510710760900100011001200
Power (KW)7.511223045557590110132
Speed (r/min)7500621548004200300028002350210019201760
ClassifierPower (KW)2.2345.57.51115152230
Max. speed (r/min)4500400032503000292025002200200018001600
Fineness (μm)10~20010~20010~20012~25012~25012~25015~30015~30015~30015~300
Max. air handling volume (m3/h)70090016003000450054008000100001200014000
