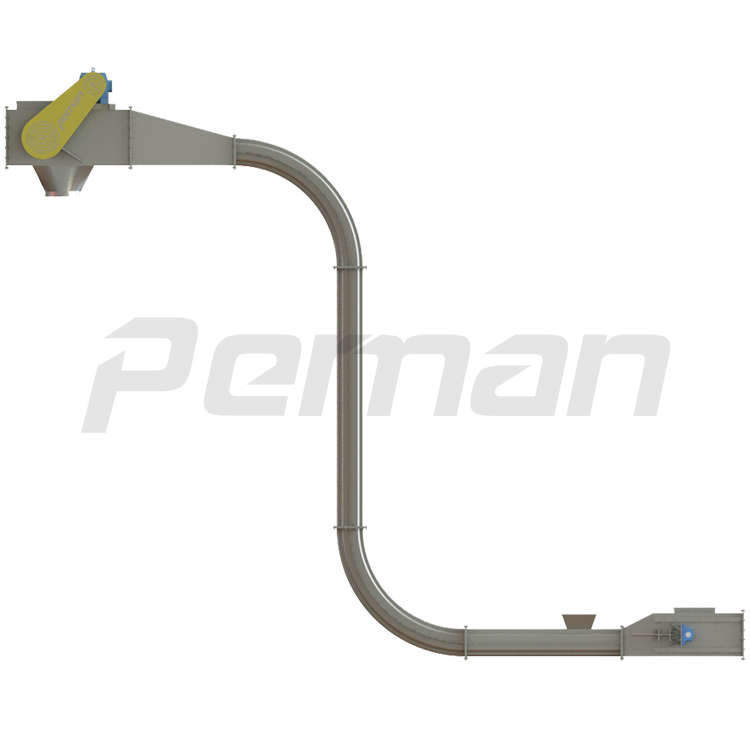

GBS Double-Chain Track Ball-Type Scraper Conveyor
GBS Double-Chain Track Ball-Type Scraper Conveyor

GBS Double-Chain Track Ball-Type Scraper Conveyor

Combining cutting-edge domestic and international technology, Peman has crafted the double-chain track ball-type scraper conveyor with efficient conveying, convenient maintenance, safety assurance, and significant energy-saving and consumption-reducing features, providing customers with an excellent product experience. Its unique structural design can flexibly achieve combinations in any direction within the vertical plane of the machine body, supports multi-point controllable feeding and discharging, and ingeniously combines the advantages of bucket elevators and scraper conveyors, making it an innovative conveying device.

custom

150-5445-08687*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

Combining cutting-edge domestic and international technology, Peman has crafted the double-chain track ball-type scraper conveyor with efficient conveying, convenient maintenance, safety assurance, and significant energy-saving and consumption-reducing features, providing customers with an excellent product experience. Its unique structural design can flexibly achieve combinations in any direction within the vertical plane of the machine body, supports multi-point controllable feeding and discharging, and ingeniously combines the advantages of bucket elevators and scraper conveyors, making it an innovative conveying device. This conveyor is specially designed to handle the high-viscosity, high-moisture, high-fluidity, and semi-abrasive materials generated by various centrifuges, and is widely suitable for the conveying of flammable, explosive, toxic, irritating-odor, and corrosive powder and granular materials, demonstrating strong adaptability and broad application prospects.

Product Features

  • 01The whole machine adopts a fully enclosed structure with good airtightness and no ash leakage during conveying.
  • 02Low operating sound, with no abnormal noise.
  • 03The casing adopts a keel structure, compact and rigid.
  • 04The conveyor chain is a double-row chain using rollers and tracks, ensuring smooth operation and chain rigidity.

Accessories

  • untitled-(2)

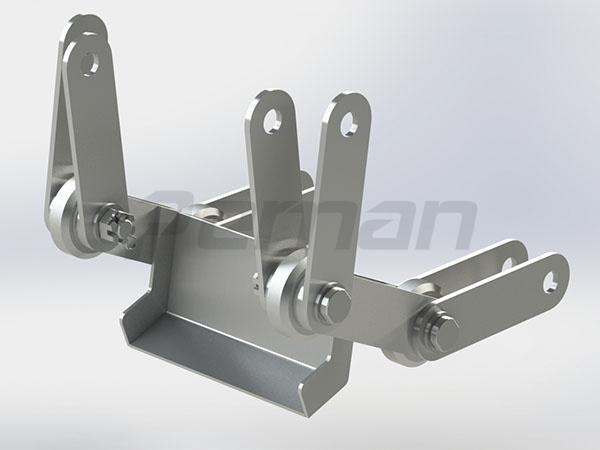

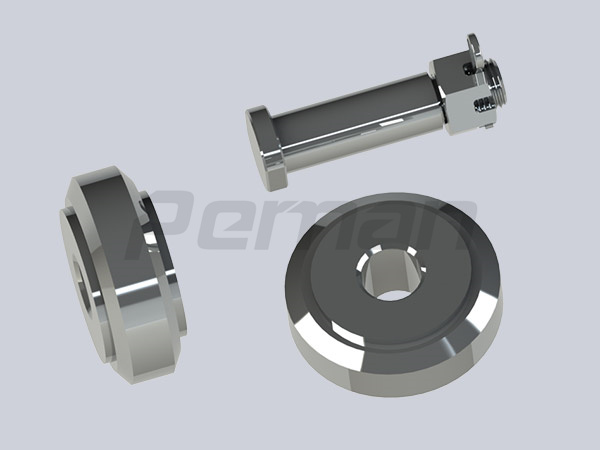

    Chain accessories

  • untitled5

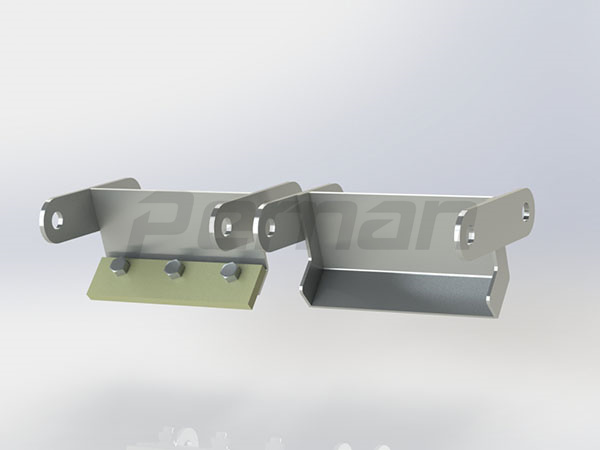

    Metal scraper and anti-friction scraper

  • untitled4

    Chain and scraper assembly

Technical Parameters

Model

Conveying capacity (m3/h)

Middle section dimensions (H*W)

Head dimensions (L*W*H)

Tail dimensions (L*W*H)

GBS150

3-7

330*350

750*660*1200

900*700*600

GBS300

13-20

320*390

900*660*1200

900*850*600

GBS500

35-45

450*710

1100*880*1500

1150*1050*900

GBS800

60-75

450*1010

1400*880*1500

1150*1350*900
