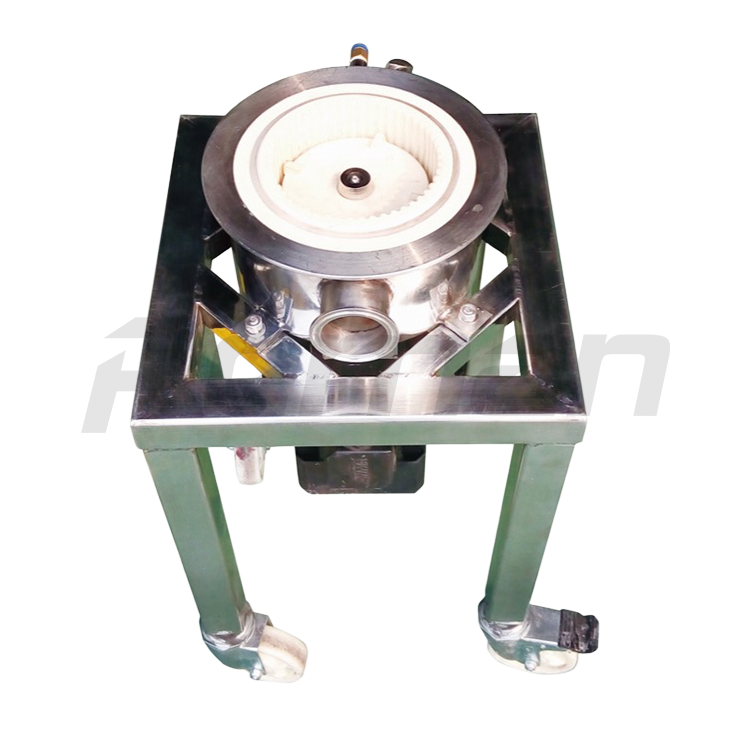

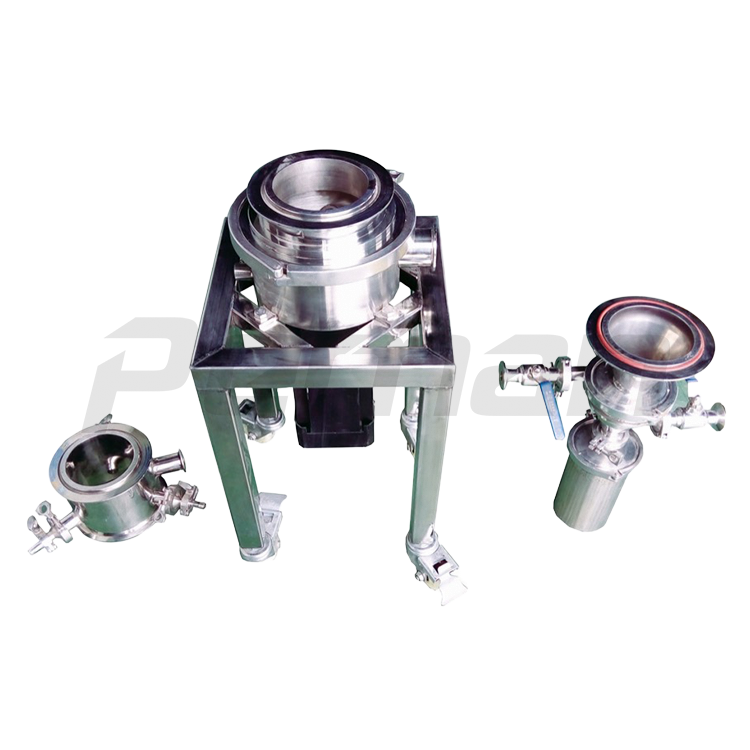

 MQW03 Jet Mill Classifier
 MQW03 Jet Mill Classifier
 MQW03 Jet Mill Classifier

MQW03 Jet Mill Classifier

The MQW03 jet mill classifier injects compressed air at high speed through nozzles so that material is crushed by collision, friction and shear inside a rotating grinding chamber. The ground material is then separated into different particle-size fractions in a precision classifying zone. It features an accurate cut point, adjustable product fineness, a quick-open structure for easy cleaning, an intelligent control chip, and broad material compatibility.

custom

150-5445-08687*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

The MQW03 jet mill classifier injects compressed air at high speed through nozzles so that material is crushed by collision, friction and shear inside a rotating grinding chamber. The ground material is then separated into different particle-size fractions in a precision classifying zone. It features an accurate cut point, adjustable product fineness, a quick-open structure for easy cleaning, an intelligent control chip, and broad material compatibility.

Product Features

  • 01Combined structure integrating mechanical grinding, jet milling and air classification
  • 02Compact structure, easy to combine
  • 03Grinding and classification fineness adjustable to any D50 value from 1 to 45 μm
  • 04High-quality gas-tight sealing structure
  • 05Horizontal classifier rotor, up to 18,000 rpm
  • 06Mobile mechanical grinding unit, extremely easy to assemble and disassemble
  • 07The mechanical grinding unit can be fully ceramized
  • 08Supports an inert gas circulating atmosphere for classifying flammable and explosive powders
  • 09Optional sintered-plate filter dust collection unit with filtration accuracy down to 0.1 μm and 99.99% capture efficiency
  • 10Especially suitable for new product R&D in research institutes and university laboratories

Technical Parameters

Parameter / ModelMQW03MQW06MQW10MQW20
Feed size (mm)<3<3<3<3
Product size d97 (μm)2-452-452-452-45
Capacity (kg/h)2-1010-5050-100100-500
Air consumption (m3/min)361020
Air pressure (MPa)0.7-0.850.7-0.850.7-0.850.7-0.85
Installed power (kW)21.842.585147
